Model	AES-150
Features	Explosion-proof product with powerful horn integrated.   Aluminium housing product of excellent durability and anti-corrosion.Protection cage equipped.   Suitable to transmit audio signal for place exists risks of explosion such as petrochemical plant,powder plant,gas equipments.   External control available,useful to trigger alarm by remote device,such as push button or reply switch.
Operation Voltage	DC12V,DC24V,AC110V,AC220V,AC380V
Sound Pressure	Max.120dB/m (Volume justified available)
Alarm Tone	5 tones below selected by internal switch,with 5 signal and 1 common cables to realize remote control 1.Fire Alarm 2.Security 3.First-Aid 4.Pi-Pi-Pi Short Interval 5.Pi-Continuous 6.Emergency 7.General Alarm(Long PI after 7 Short) 8.Rapid Beeps 9.Marine Horn 10.Motor Siren 11.Guard 12.Beep-Beep
Control Type	Alarm Tone Internal switch select / external remote contact control
Material	Lampshade:Explosion Proof Tempered Glass; Internal Lampshade:PC; Housing:DIECAST Al; Horn Housing: SUS316L; Protection Cage:SUS316L;
Protection Class	Exd II CT6,IP66
Operation Temperature	-50℃～+70℃
Weight	6.3 Kg

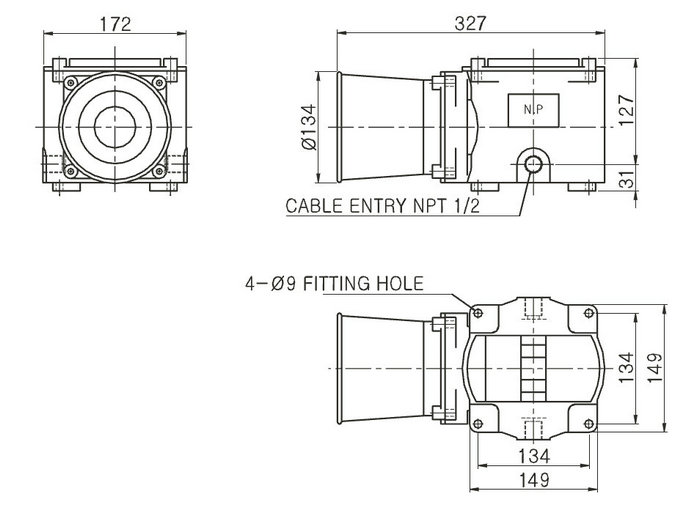

Measurement Diagram

Sound Tone Selection

There two ways to control the built-in sound

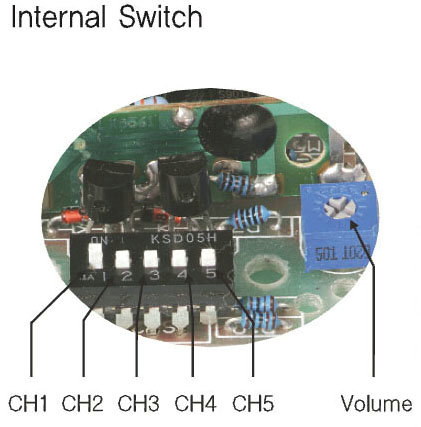

1.Internal Switch

use an internal selector switch to select according tones.

2.External Contact Control

Base on on/off contact signal,it can realize external control with signal cables,which is helpful for trigger alarm tone by remote device,such as push button or reply switch,

Volume Adjustment

this product has a volume control device on an internal circuit board.Rotate clockwise to increase the volume.



Power cord into port (CABLE ENTRY)

1. the use of explosion-proof packing

2. the mains inlet: standard: one-second PF

3. introduction PF three-fourths size can be made



Wiring

1.AC Product : Wire without polarity

2.DC Product : Black line is Negative(-).

3.For a more secure connection, ends of the power cables using cold press terminal block "o", "u"
