Series :	Industrial Audio Visual Warning Equipment
名稱 :	AEL-150防爆警示燈
name :	AEL-150 Explosion Proof Warning Light
Click :	7728

Model	AEL-150R	AEL-150L	AEL-150S
Features	Explosion-proof product with high brightness warning light integrated. Aluminium housing product of excellent durability and anti-corrosion.Protection cage equipped. Suitable to transmit visual signal for place exists risks of explosion such as petrochemical plant,powder plant,gas equipments.
Lighting Type	Bulb Revolving Control RPM by Built-in controller. Revolving Speed: 120~140RPM	LED Flashing excellent impact resistance and semi-permanent lifespan.Flashing or steady.	Xenon Lamp Strobe Suitable for place visibility is poor or with dust or fog permanently exists
Operation Voltage	DC12V,DC24V,AC110V,AC220V,AC380V
Material	Lampshade:Explosion Proof Tempered Glass; Internal Lampshade:PC; Housing:DIECAST Al; Protection Cage:SUS316L;
Protection Class	Exd II CT6,IP66
Operation Temperature	-50℃～+70℃
Weight	4.9Kg

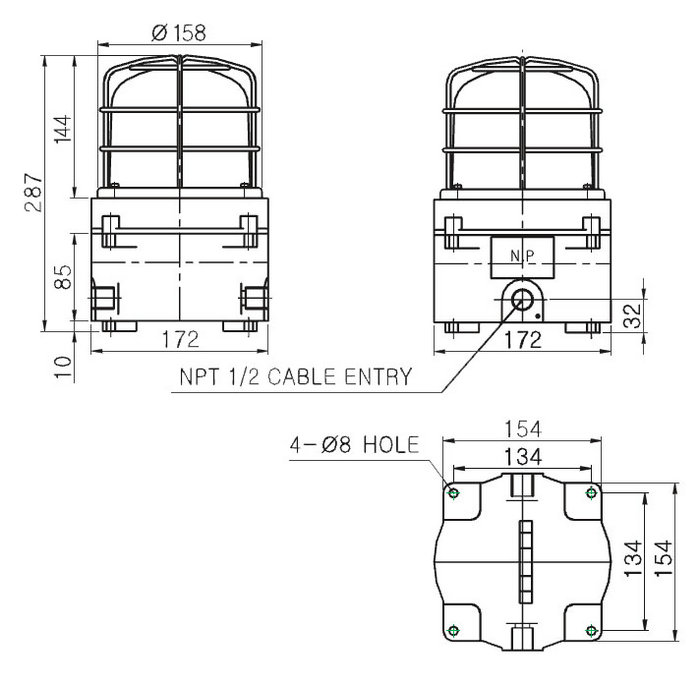

Measurement Diagram

Power cord into port (CABLE ENTRY)

1. the use of explosion-proof packing

2. the mains inlet: standard: one-second PF

3. introduction PF three-fourths size can be made

Wiring

1.AC Product : Wire without polarity

2.DC Product : Black line is Negative(-).

3.For a more secure connection, ends of the power cables using cold press terminal block "o", "u"
